<tc>KAB | Caps with a collar</tc>
<tc>Download technical drawing</tc>
<tc>Download data sheet</tc>

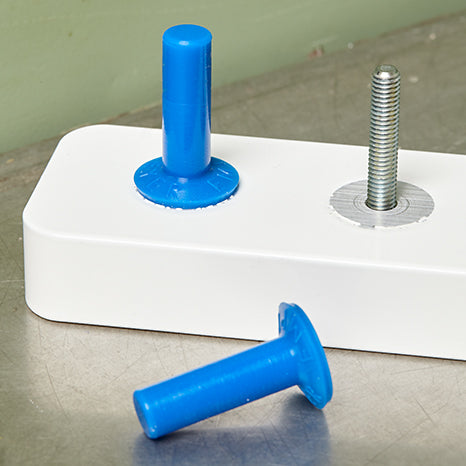

Caps with collar for masking threaded bolts, axles, shafts and similar. The additional collar allows a surface centred on the threaded bolt to be kept free of paint in one operation. The chamfer on the collar minimises a possible paint chipping edge.
APPLICATION AREAS
Powder coating, wet painting, KTL and sandblasting
MATERIAL
Silicone
| Artikel-Nr. | STK./VPE | Preis | VPE/Warenkorb/Muster | BESTAND | FARBE | GEWINDE | L IN MM | Ø d IN MM | D IN MM |
|---|---|---|---|---|---|---|---|---|---|
| KAB.06 | 100 |
|
|
15122 | Blau | M6 | 30 | 5,6 | 19 |
| KAB.08 | 100 |
|
|
10324 | Gelb | M8 | 25 | 7,5 | 25 |
| KAB.10 | 100 |
|
|
1166 | Rostrot | M10 | 30 | 9,4 | 28 |
