<tc>GB | Threaded bolt with silicone seal and suspension eye</tc>
<tc>Download technical drawing</tc>
<tc>Download data sheet</tc>

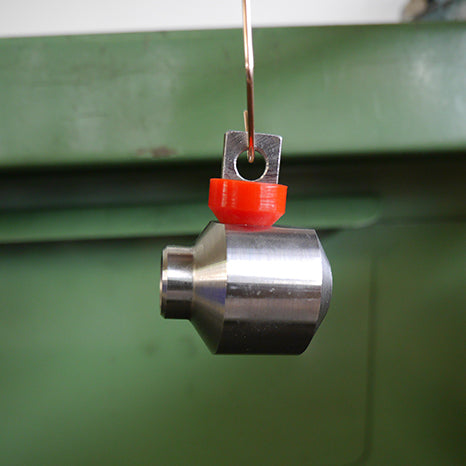

Threaded bolt with silicone seal and suspension eye for simultaneous masking and suspension of components with metric threads.
APPLICATION AREAS
Powder coating, wet painting and KTL
MATERIAL
Silicone and steel
| Artikel-Nr. | STK./VPE | Preis | VPE/Warenkorb/Muster | BESTAND | FARBE | GEWINDE | L IN MM | D IN MM | D1 IN MM5 | d2 IN MM |
|---|---|---|---|---|---|---|---|---|---|---|
| GB.03 | 500 |
|
|
1557 | Pink | M3 | 11 | 10 | 3 | 3 |
| GB.04 | 500 |
|
|
1678 | Transparent | M4 | 12 | 11 | 4 | 3 |
| GB.05 | 500 |
|
|
1086 | Orange | M5 | 12 | 11 | 5 | 3 |
| GB.06 | 200 |
|
|
1048 | Weiß | M6 | 12,5 | 14 | 6 | 5 |
| GB.08 | 200 |
|
|
460 | Gelb | M8 | 13 | 18 | 8 | 6 |
| GB.10 | 100 |
|
|
791 | Blau | M10 | 15,5 | 20 | 10 | 10 |
| GB.12 | 100 |
|
|
1146 | Grün | M12 | 15 | 22 | 12 | 10 |
| GB.14 | 100 |
|
|
1422 | Lila | M14 | 15 | 23 | 14 | 10 |
| GB.16 | 50 |
|
|
964 | Rot | M16 | 16 | 24 | 16 | 10 |
| GB.20 | 20 |
|
|
550 | Braun | M20 | 19,5 | 28 | 20 | 10 |
