<tc>FFS | Countersunk plugs</tc>
<tc>Download technical drawing</tc>
<tc>Download data sheet</tc>

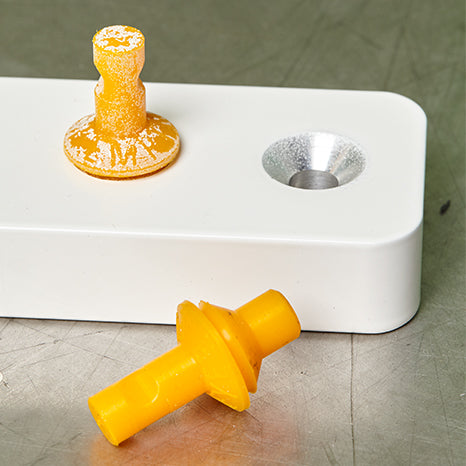

Moulded plugs for masking counterbores according to DIN 74 - F8 (Form F). The additional shadow gap minimises a possible paint chipping edge.
APPLICATION AREAS'
Powder coating, wet painting, KTL and sandblasting
MATERIAL
Silicone
| Artikel-Nr. | STK./VPE | Preis | VPE/Warenkorb/Muster | BESTAND | FARBE | GEWINDE | Ø d IN MM | D IN MM | L1 IN MM | L2 IN MM |
|---|---|---|---|---|---|---|---|---|---|---|
| FFS.04 | 100 |
|
|
1344 | Weiß | M4 | 4,6 | 12 | 9,3 | 2,3 |
| FFS.05 | 100 |
|
|
806 | Grün | M5 | 5,6 | 14,5 | 9,9 | 2,9 |
| FFS.06 | 100 |
|
|
1301 | Blau | M6 | 6,8 | 16,3 | 11,3 | 3,3 |
| FFS.08 | 100 |
|
|
1531 | Gelb | M8 | 9,3 | 21 | 12,3 | 4,3 |
| FFS.10 | 100 |
|
|
589 | Rostrot | M10 | 11,3 | 25,9 | 15 | 5,5 |
| FFS.12 | 100 |
|
|
1284 | Rot | M12 | 13,9 | 30,8 | 16,5 | 6,5 |
| FFS.16 | 100 |
|
|
10504 | Grün | M16 | 18 | 38,4 | 18,9 | 7,9 |
