<tc>FFG | Thread outlet plugs</tc>
<tc>Download technical drawing</tc>
<tc>Download data sheet</tc>

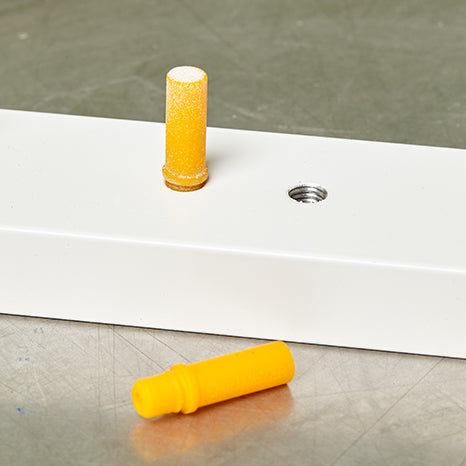

Moulded plugs for masking metric thread sizes. The additional shadow gap minimises a possible paint chipping edge.
Attention! To ensure that no or only a very slight paint chipping edge forms, it is important that the plug is only pressed into the thread as far as the first bulge.
APPLICATION AREAS
Powder coating, wet painting, KTL andsandblasting
MATERIAL
Silicone
| Artikel-Nr. | STK./VPE | Preis | VPE/Warenkorb/Muster | BESTAND | FARBE | GEWINDE | L IN MM | Ø d IN MM | Ø D IM MM |
|---|---|---|---|---|---|---|---|---|---|
| FFG.04 | 100 |
|
|
31196 | Weiß | M4 | 6,4 | 3,4 | 5,2 |
| FFG.05 | 100 |
|
|
23767 | Grün | M5 | 6,4 | 4,3 | 6,7 |
| FFG.06 | 100 |
|
|
20114 | Blau | M6 | 6,7 | 5,2 | 7,8 |
| FFG.08 | 100 |
|
|
17972 | Gelb | M8 | 8,8 | 7,2 | 9,2 |
| FFG.10 | 100 |
|
|
30115 | Rostrot | M10 | 10 | 8,8 | 12,2 |
| FFG.12 | 100 |
|
|
6007 | Rot | M12 | 12 | 10,6 | 14,5 |
| FFG.16 | 100 |
|
|
14966 | Grün | M16 | 13 | 14,4 | 18,8 |
