<tc>GE | Screw caps</tc>
<tc>Download technical drawing</tc>

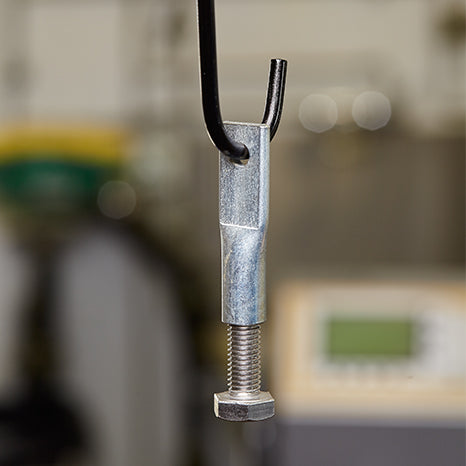

Screw caps are designed for holding components with metric external thread. Hanging is possible in combination with painting hooks.
APPLICATION AREAS
Powder coating, KTL and wet painting
MATERIAL
Steel S235 JR, galvanised
| Article No. | Units/Package | Price | Quantity | Stock | L in mm | D in mm | Thread |
|---|---|---|---|---|---|---|---|
| GE.03 | 500 |
|
|
14700 | 5 | 3 | M3 |
| GE.04 | 400 |
|
|
66220 | 8 | 3 | M4 |
| GE.05 | 200 |
|
|
23456 | 13 | 4 | M5 |
| GE.06 | 100 |
|
|
24593 | 15 | 5 | M6 |
| GE.08 | 50 |
|
|
5655 | 15 | 6 | M8 |
| GE.10 | 25 |
|
|
1833 | 20 | 8 | M10 |
| GE.12 | 25 |
|
|
6 | 25 | 10 | M12 |
| GE.14 | 25 |
|
|
409 | 25 | 12 | M14 |
| GE.16 | 25 |
|
|
226 | 25 | 14 | M16 |
| GE.18 | 25 |
|
|
1303 | 25 | 16 | M18 |
| GE.20 | 25 |
|
|
436 | 25 | 18 | M20 |
