Our rotating devices enable controlled 360° rotation of workpieces during painting or coating. They are used to move components in a targeted manner, thereby ensuring uniform coating from all directions. Rotating devices offer a decisive advantage in the coating process, particularly for complex geometries or hard-to-reach areas.
Depending on the model, the rotating devices are free-rotating, ball-bearing mounted, or equipped with a locking function, and can be used for both continuous operation and temporary applications.
The rotating devices are used in particular for powder coating and liquid painting.
An overview of our four models

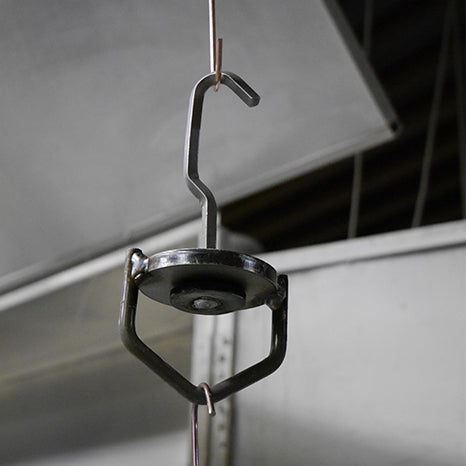

Rotation Device DV.01:
- The DV.01 rotation device features ball bearings, enabling exceptionally smooth, unrestricted rotation of workpieces. Its open design makes it versatile and easy to integrate into existing suspension systems.
- It has a load capacity of 50 kg (with a safety factor of 2). Made of galvanized steel, it is designed for industrial use and is durable.
Rotation device DV.02:
- The DV.02 rotation device features 90°-step detents, enabling precise positioning of workpieces. The closed design provides additional stability and is particularly suitable for continuous use.
- It has a load capacity of 125 kg (with a safety factor of 2). Made of stainless steel, it is particularly robust and suitable for demanding applications.
Rotation Device DV.03:
- The DV.03 rotation device rotates freely and offers improved rotational characteristics thanks to an integrated brass disc. This enables smooth and controlled movement of the components.
- It has a load capacity of 75 kg (with a safety factor of 2). Made of steel, this model is a robust solution for a wide variety of coating processes.
Rotation Device DV.04:
- The DV.04 rotation device is ball-bearing guided and enables particularly smooth, free rotation of workpieces. Its open design makes it versatile and suitable for easy integration into existing processes. Made of galvanized steel, it offers a durable and reliable solution for applications where components need to be moved during coating.
- It has a load capacity of 125 kg (with a safety factor of 2).
Advantages of Rotating Fixtures
- 360° rotation for uniform coating results
- makes it easier to reach hard-to-access areas
- improves process reliability for complex components
- flexible application – permanent or temporary
- easy to use in daily operations
Fast delivery
All catalog items are available at our warehouse in Bad Essen. Thanks to our efficient warehouse management, orders received by 1:00 PM can be shipped the same day. As a rule, delivery therefore takes place on the next business day.
Free Sample Order
You can order a free sample of any version of the product by clicking the icon in the product table. This allows you to test our paint hooks right at your location and see our quality for yourself. If you order only samples, there are no shipping costs.
How to Order Samples
1. Log in to our online store
2. Select the desired product
3. In the product table, you will find an additional sample icon next to the shopping cart icon
4. Clicking the sample icon adds the product as a sample to your shopping cart
5. You can then complete the order as usual.
Your Benefits with Emptmeyer
- Stock items available immediately
- Free samples with no shipping costs
- Personal consultation from our sales representatives
- Development and manufacturing of our paint hooks in Bad Essen
- Everything from a single source – from masking to accessories to racks and painting hooks
Custom Rotating Devices
Do you need special dimensions or a custom design?
Discover our custom solutions in the EMPTMEYER plus section
Request a custom solution now
