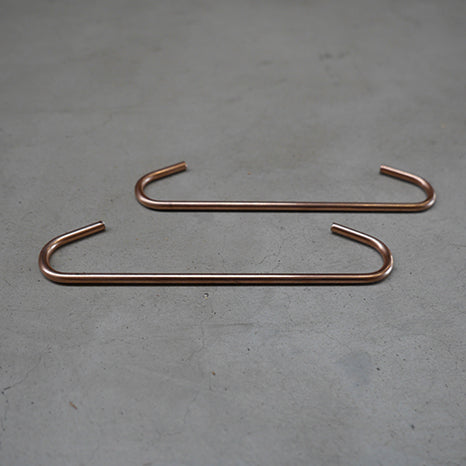

<tc>170.1 | Hooks C-form | Round | Flat</tc>

Product Specifications

Material: S235 JR steel
Design: C-shape, round, flat
Wire diameter: 1.50 mm to 4 mm
Length: 60 mm to 600 mm
Leg width: 8 mm

Upon request, we can also supply painting hooks made from other materials (including spring steel and stainless steel) or in custom lengths and wire diameters (up to 30 mm).

Article No.	Units/Package	Stock	L X Ø in mm	Radius (R) in mm
170.100150006000K	5000	10000	60 x 1,50	8
170.100150007500K	4000	122000	75 x 1,50	8
170.100150010000K	1500	23500	100 x 1,50	8
170.100150015000K	1500	8250	150 x 1,50	8
170.100150025000K	1000	2000	250 x 1,50	8
170.100200006000K	4000	12000	60 x 2,00	8
170.100200007500K	2000	20000	75 x 2,00	8
170.100200010000K	2500	100000	100 x 2,00	8
170.100200015000K	1250	14800	150 x 2,00	8
170.100200020000K	1000	2100	200 x 2,00	8
170.100300010000K	1500	991487	100 x 3,00	8
170.100300015000K	900	1800	150 x 3,00	8
170.100300020000K	400	800	200 x 3,00	8
170.100400060000K	400	486	600 x 4,00	8

Product Description

Our C-shaped coating hooks (round, flat-lying, 8 mm radius) are particularly well-suited for applications involving smaller components and confined spaces. Their smaller radius allows for compact and precise suspension during the coating process. The round design makes it easier to hook components, especially those with complex geometries or limited accessibility. Compared to square hooks, this reduces the risk of bumping into component edges during hooking. The flat design allows components to be positioned in a space-saving manner and efficiently guided through the coating process. The coating hooks are used in powder coating, wet painting, and KTL coating, among other applications. Manufactured from robust S235 JR steel, the coating hooks are designed for industrial use and are reusable multiple times. Alternative materials such as stainless steel or spring steel are available upon request.

Advantages of the painting hook

Small radius (8 mm) for compact and space-saving component mounting
Suitable for different component weights depending on the selected version
Durable and reusable multiple times
Available in many sizes and wire thicknesses as a standard product

Fast delivery

All catalog items are available at our warehouse in Bad Essen. Thanks to our efficient warehouse management, orders received by 1:00 PM can be shipped the same day. As a rule, delivery therefore takes place on the next business day.

Free Sample Order

You can order a free sample of any version of the product by clicking the icon in the product table. This allows you to test our paint hooks right at your location and see our quality for yourself. If you order only samples, there are no shipping costs.

How to Order Samples

1. Log in to our online store
2. Select the desired product
3. In the product table, you will find an additional sample icon next to the shopping cart icon
4. Clicking the sample icon adds the product as a sample to your shopping cart
5. You can then complete the order as usual.

Your Benefits with Emptmeyer

Stock items available immediately
Free samples with no shipping costs
Personal consultation from our sales representatives
Development and manufacturing of our paint hooks in Bad Essen

Custom Paint Hooks

Do you need a specific geometry or a custom solution? We are happy to manufacture custom paint hooks for you with a wire diameter of up to 30 mm and a total length of 1500 mm.

Discover our custom paint hooks in the EMPTMEYER plus section.
Request a custom solution now
