<tc>170.0 | Hooks C-form | round | flat</tc>

Product Specifications

Material: S235 JR steel
Design: C-shape, round, flat
Wire diameter: 1.50 mm to 8 mm
Length: 50 mm to 900 mm
Leg width: 11 mm

Upon request, we can also supply painting hooks made from other materials (including spring steel and stainless steel) or in custom lengths and wire diameters (up to 30 mm).

Article No.	Units/Package	Stock	L X Ø in mm	Radius (R) in mm
170.000150005000K	5000	70000	50 x 1,50	11
170.000150006000K	5000	280000	60 x 1,50	11
170.000150007500K	4000	91000	75 x 1,50	11
170.000150010000K	2000	182500	100 x 1,50	11
170.000150015000K	800	11200	150 x 1,50	11
170.000150020000K	500	3500	200 x 1,50	11
170.000200005000K	4000	82990	50 x 2,00	11
170.000200006000K	2500	92500	60 x 2,00	11
170.000200007500K	2500	126500	75 x 2,00	11
170.000200010000K	1800	281790	100 x 2,00	11
170.000200015000K	1000	66000	150 x 2,00	11
170.000200020000K	600	16900	200 x 2,00	11
170.000200025000K	500	20500	250 x 2,00	11
170.000250010000K	1500	79497	100 x 2,50	11
170.000300006000K	2000	205990	60 x 3,00	11
170.000300007500K	1250	187300	75 x 3,00	11
170.000300010000K	1000	67000	100 x 3,00	11
170.000300015000K	600	132550	150 x 3,00	11
170.000300020000K	400	22400	200 x 3,00	11
170.000300025000K	400	2100	250 x 3,00	11
170.000300030000K	400	25750	300 x 3,00	11
170.000300035000K	400	32000	350 x 3,00	11
170.000300040000K	400	10400	400 x 3,00	11
170.000300050000K	500	32000	500 x 3,00	11
170.000300060000K	500	8500	600 x 3,00	11
170.000300070000K	500	0	700 x 3,00	11
170.000300080000K	500	4995	800 x 3,00	11
170.000400006000K	1200	9360	60 x 4,00	11
170.000400007500K	1200	24000	75 x 4,00	11
170.000400010000K	1000	37600	100 x 4,00	11
170.000400015000K	500	64000	150 x 4,00	11
170.000400020000K	250	34000	200 x 4,00	11
170.000400025000K	250	38197	250 x 4,00	11
170.000400030000K	250	4500	300 x 4,00	11
170.000400035000K	250	3000	350 x 4,00	11
170.000400040000K	350	0	400 x 4,00	11
170.000400070000K	400	800	700 x 4,00	11
170.000400080000K	400	3600	800 x 4,00	11
170.000400090000K	400	0	900 x 4,00	11
170.000500010000K	500	8495	100 x 5,00	11
170.000500015000K	350	3150	150 x 5,00	11
170.000500020000K	350	3150	200 x 5,00	11
170.000500030000K	250	3471	300 x 5,00	11
170.000500035000K	250	4250	350 x 5,00	11
170.000500050000K	250	5000	500 x 5,00	11
170.000600010000K	500	12500	100 x 6,00	11
170.000600015000K	300	12900	150 x 6,00	11
170.000600020000K	250	4980	200 x 6,00	11
170.000600025000K	200	4398	250 x 6,00	11
170.000600080000K	200	3586	800 x 6,00	11
170.000800010000K	200	3865	100 x 8,00	11
170.000800020000K	200	1379	200 x 8,00	11
170.000800030000K	100	677	300 x 8,00	11

Product Description

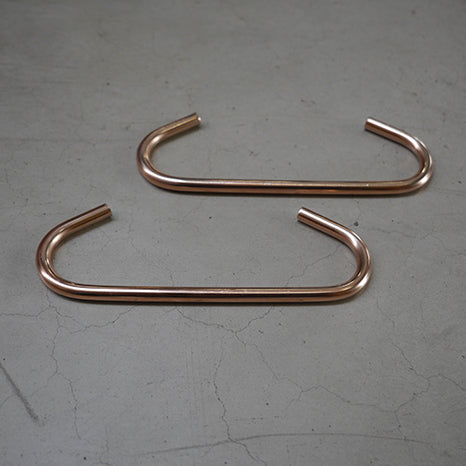

Our C-shaped (round, flat-lying) painting hooks with an 11 mm radius ensure stable component support during the coating process. The flat-lying design allows for space-saving component placement during the coating process. The round design offers advantages when hooking components, particularly in cases of complex geometries or confined spaces. The coating hooks are used in powder coating, wet painting, and KTL coating, among other applications. Manufactured from robust S235 JR steel, the coating hooks are designed for industrial use and are reusable multiple times. Alternative materials such as stainless steel or spring steel are available upon request.

Advantages of the painting hook

Flat design suitable for space-saving placement
accommodates components of varying weights depending on the selected model
durable and reusable
available in many sizes and wire gauges as a standard product

Fast delivery

All catalog items are available at our warehouse in Bad Essen. Thanks to our efficient warehouse management, orders received by 1:00 PM can be shipped the same day. As a rule, delivery therefore takes place on the next business day.

Free Sample Order

You can order a free sample of any version of the product by clicking the icon in the product table. This allows you to test our paint hooks right at your location and see our quality for yourself. If you order only samples, there are no shipping costs.

How to Order Samples

1. Log in to our online store
2. Select the desired product
3. In the product table, you will find an additional sample icon next to the shopping cart icon
4. Clicking the sample icon adds the product as a sample to your shopping cart
5. You can then complete the order as usual.

Your Benefits with Emptmeyer

Stock items available immediately
Free samples with no shipping costs
Personal consultation from our sales representatives
Development and manufacturing of our paint hooks in Bad Essen

Custom Paint Hooks

Do you need a specific geometry or a custom solution? We are happy to manufacture custom paint hooks for you with a wire diameter of up to 30 mm and a total length of 1500 mm.

Discover our custom paint hooks in the EMPTMEYER plus section.
Request a custom solution now
