170.0 | Hooks C-form | round | 90° turned

Product Features

Material: S235 JR steel
Design: C-shape, round, 90° turned
Wire diameter: 1.50 mm to 6 mm
Length: 60 mm to 450 mm
Leg widths: 11 mm

Upon request, we can also supply painting hooks made from other materials (including spring steel and stainless steel) or in custom lengths and wire diameters (up to 30 mm).

Article No.	Units/Package	Stock	L X Ø in mm	Radius (R) in mm
170.000150006090K	2000	301500	60 x 1,50	11
170.000150010090K	2000	47750	100 x 1,50	11
170.000200007590K	1500	29500	75 x 2,00	11
170.000200010090K	500	31500	100 x 2,00	11
170.000200015090K	800	12000	150 x 2,00	11
170.000200020090K	400	0	200 x 2,00	11
170.000300007590K	1000	13000	75 x 3,00	11
170.000300010090K	500	25440	100 x 3,00	11
170.000300015090K	500	6500	150 x 3,00	11
170.000300020090K	350	5950	200 x 3,00	11
170.000300025090K	350	15750	250 x 3,00	11
170.000300030090K	300	26700	300 x 3,00	11
170.000300045090K	250	18000	450 x 3,00	11
170.000400010090K	500	5500	100 x 4,00	11
170.000400015090K	250	4000	150 x 4,00	11
170.000400020090K	250	10500	200 x 4,00	11
170.000500040090K	200	2595	400 x 5,00	11
170.000600010090K	500	500	100 x 6,00	11

Product Description

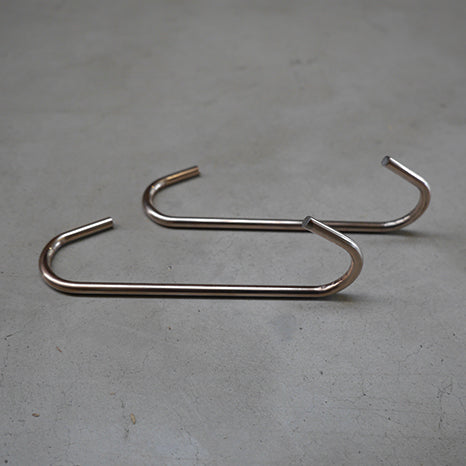

Our C-shaped painting hooks (round, rotated 90°) with an 11 mm radius ensure a secure hold on components during the coating process. The 90° rotated design allows even hard-to-reach areas to be coated reliably. The round geometry allows components to be easily hooked even when space is limited or the component has a complex shape. The painting hooks are used in applications such as powder coating, wet painting, and cathodic electrocoating (KTL). Manufactured from robust S235 JR steel, the painting hooks are designed for industrial use and are reusable multiple times. Alternative materials such as stainless steel or spring steel are available upon request.

Advantages of the painting hook

90° twisted design for flexible component positioning
Suitable for different component weights depending on the selected design
Durable and reusable multiple times
Available in many sizes and wire thicknesses as a standard product

Fast delivery

All catalog items are available at our warehouse in Bad Essen. Thanks to our efficient warehouse management, orders received by 1:00 PM can be shipped the same day. As a rule, delivery therefore takes place on the next business day.

Free Sample Order

You can order a free sample of any version of the product by clicking the icon in the product table. This allows you to test our paint hooks right at your location and see our quality for yourself. If you order only samples, there are no shipping costs.

How to Order Samples

1. Log in to our online store
2. Select the desired product
3. In the product table, you will find an additional sample icon next to the shopping cart icon
4. Clicking the sample icon adds the product as a sample to your shopping cart
5. You can then complete the order as usual.

Your Benefits with Emptmeyer

Stock items available immediately
Free samples with no shipping costs
Personal consultation from our sales representatives
Development and manufacturing of our paint hooks in Bad Essen

Custom Paint Hooks

Do you need a specific geometry or a custom solution? We are happy to manufacture custom paint hooks for you with a wire diameter of up to 30 mm and a total length of 1500 mm.

Discover our custom paint hooks in the EMPTMEYER plus section.
Request a custom solution now
