FG.ST | Flex Hangingsystem side part
<tc>Download technical drawing</tc>

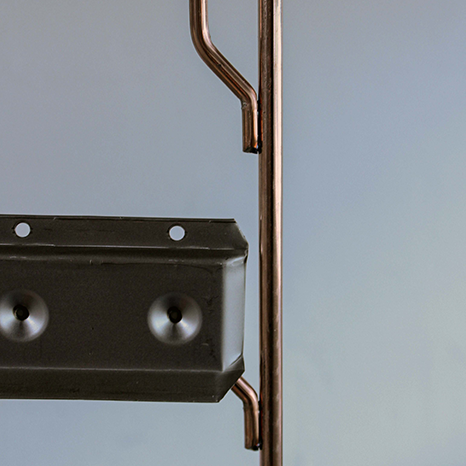

The Flex hanging system side parts are used for the quick and flexible construction of frame constructions. The side parts with firmly welded mounting brackets can be used to hold crossbars and Flex hanging system fixed levels (FG.QT).
Customised dimensions and solutions as well as other materials available on request.
APPLICATION AREAS
Powder coating and wet painting
MATERIAL
Steel S235 JR
| Article No. | Units/Package | Price | Quantity | Stock | L in mm | H in mm | X in mm | H in mm | Number of arms |
|---|---|---|---|---|---|---|---|---|---|
| FG.ST.1500.100 | 1 |
|
|
67 | 1500 | 1000 | 100 | 500 | 10 |
| FG.ST.1500.150 | 1 |
|
|
50 | 1500 | 1000 | 150 | 500 | 7 |
| FG.ST.1500.200 | 1 |
|
|
116 | 1500 | 900 | 200 | 600 | 5 |
| FG.ST.2000.100 | 1 |
|
|
307 | 2000 | 1500 | 100 | 500 | 15 |
| FG.ST.2000.150 | 1 |
|
|
253 | 2000 | 1450 | 150 | 550 | 10 |
| FG.ST.2000.200 | 1 |
|
|
219 | 2000 | 1500 | 200 | 500 | 8 |
