<tc>FG.LT | Flex hanging system – Shafts vertical | One-sided</tc>
<tc>Download technical drawing</tc>

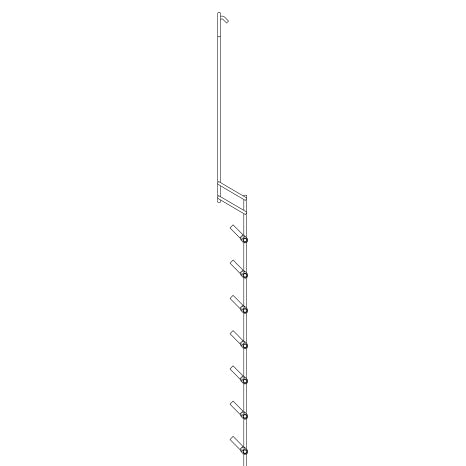

The shaft vertical is produced (vertical suspension solution) with firmly welded square tubes for holding components. The tubes are used to hold various inserts and thus offer a flexible design of the painting rack. The frame is supplied with an anti-twist hook as standard. Customised dimensions and solutions as well as other materials available on request.
APPLICATION AREAS
Powder coating and wet painting
MATERIAL
Steel S235 JR
| Artikel-Nr. | STK./VPE | Preis | VPE/Warenkorb/Muster | BESTAND | L IN MM | H IN MM | ANZAHL HÜLSEN | X IN MM | H IN MM3 |
|---|---|---|---|---|---|---|---|---|---|
| FG.LT.1500.050.E | 1 |
|
|
204 | 1500 | 1030 | 17 | 50 | 470 |
| FG.LT.1500.100.E | 1 |
|
|
113 | 1500 | 1030 | 9 | 100 | 470 |
