<tc>FG.LT | Flex hanging system – Shafts vertical | Both-sided</tc>
<tc>Download technical drawing</tc>

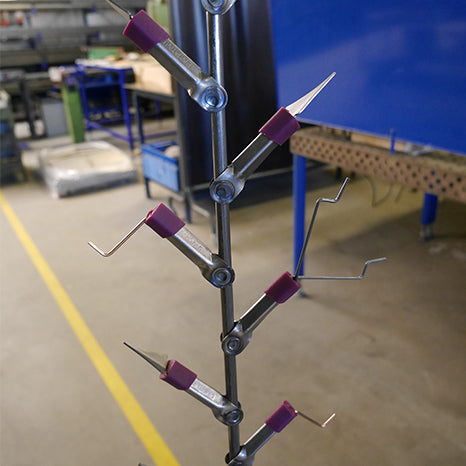

The shaft vertical is produced (vertical suspension solution) with firmly welded square tubes for holding components. The tubes are used to hold various inserts and thus offer a flexible design of the painting rack. The frame is supplied with an anti-twist hook as standard. Customised dimensions and solutions as well as other materials available on request.
APPLICATION AREAS
Powder coating and wet painting
MATERIAL
Steel S235 JR
| Artikel-Nr. | STK./VPE | Preis | VPE/Warenkorb/Muster | BESTAND | L IN MM | H IN MM | ANZAHL HÜLSEN | X IN MM | H IN MM3 |
|---|---|---|---|---|---|---|---|---|---|
| FG.LT.1500.100.B | 1 |
|
|
179 | 1500 | 955 | 18 | 100 | 545 |
| FG.LT.1500.200.B | 1 |
|
|
215 | 1500 | 1000 | 10 | 200 | 500 |
